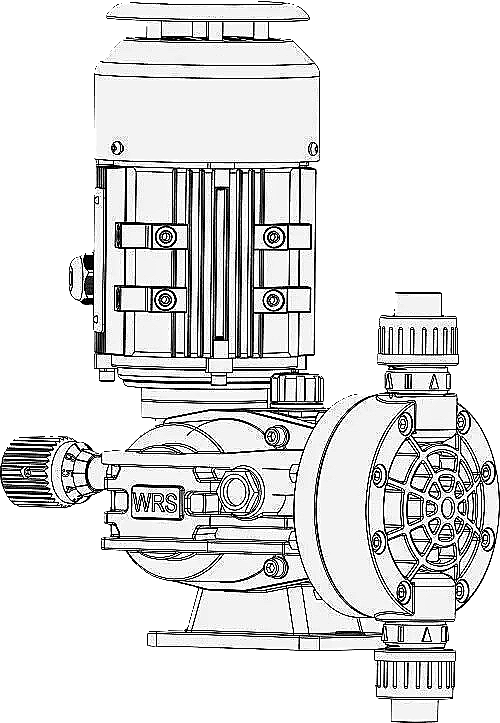

The Motor Driven MG/MA/MB range are mechanically actuated diaphragm metering pumps designed for accurate, high-capacity dosing across a wide range of industrial processes. With flow rates from 10 to 1800 L/h and pressures up to 10 bar, these pumps deliver consistent performance in sectors such as petrochemical, water treatment, food and beverage, pharmaceuticals, agriculture and chemical processing.
Built for flexibility, the series handles corrosive and non-corrosive liquids (0.3–1000 cps) within a temperature range of -15°C to 60°C. Flow rate can be adjusted manually from 0–100%, even while operating, with a dosing accuracy of ±1% across the 30–100% range.
Available with pump heads in PVC, SS304, SS316 or PVDF, and optional explosion-proof or variable-frequency motors, the MG/MA/MB Series offers the robust reliability and customisation needed for real-world process control.

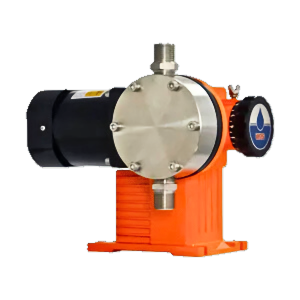

The Motor Driven MG Series is a mechanically operated diaphragm metering pump designed for accurate, efficient dosing in a wide range of industrial applications. With flow rates from 15 to 130 L/h and pressures up to 10 bar, it delivers reliable performance in sectors including water treatment, chemical processing, pharmaceuticals, food production, and agriculture.
Engineered for durability and flexibility, the MG Series handles corrosive or non-corrosive liquids (0.3–1000 cps) across temperatures from -15°C to 60°C. The pump offers manual stroke adjustment (0–100%) during operation, with dosing accuracy of ±1% over the 30–100% range.
Available in material options like PVC, SS304, SS316, and PTFE, and compatible with 220V or 380V motors, the MG Series is a compact, low-energy solution for consistent dosing performance.
MG model selection
Model | Flow (lph) | Pressure (bar) | Stroke/min |
| Connection type
PVDF | Connection type (304/316) |
|---|---|---|---|---|---|---|
| MG0015 | 15 | 10 | 130 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0025 | 25 | 10 | 86 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0040 | 40 | 7 | 130 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0060 | 60 | 6 | 86 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG0080 | 80 | 5 | 86 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00100 | 100 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00120 | 120 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00150 | 150 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
MG material selection
Pump head material | Diaphragm | Valve seat | Valve ball | Inlet | Outlet |
|---|---|---|---|---|---|
| PVC | PTFE | Viton Rubber | Ceramic | PE | PE |
| PVDF | PTFE | Viton Rubber | Ceramic | PE | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | SS316 |
MG specifications
| General specifications | |
|---|---|
| Model | MG Series |
| Flowrate | 15 - 150 LPH |
| Pressure | 4 - 10 Bar |
| Pump Head Material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating method | Continuous or intermediate |
| Number of pump head | 1 |
| Connection type | Tube Compression fitting / glue union / weld union |
| Flow adjustment method | Adjustable hand-wheel |
| Flow adjustment display method | Analog display |
| Control remotely | No |
| Suction lift | 2m |
| Inlet/Outlet valve type | Ball valve - single |
| Protection | IP55 |
| Insulation class | Class F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross Weight: 9.5 KG Net Weight: 10KG |
| Driving method | Motor driven mechanical diaphragm |
| Input power | MG15-130: 60W MG150: 90W |
| Supply required | 1ph/3ph 50Hz – 220V/380V |
| Stroke per minute | 80 - 180 |
| Diaphragm | |
| Diameter | 60 - 84 mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| Fluid parameters | |
| Fluid temperature range | -15℃ - 60℃ |
| Viscosity range | 0.3 - 1000cps |
| Environment parameters | |
Environment temperature range | -30 - 80 (°C) |
Outdoor installation | Yes, with shelter protection from rain and direct sunlight. |

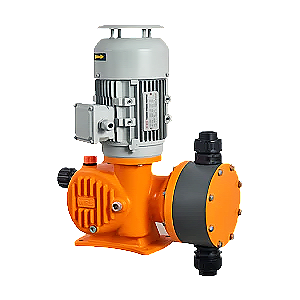

The Motor Driven MB Series is a mechanically driven diaphragm metering pump designed for reliable, high-capacity dosing in a wide range of industrial and process applications. With flow rates from 250 to 1800 L/h and pressure handling up to 10 bar, it is well-suited for sectors such as chemical processing, water treatment, pharmaceuticals, food production and environmental protection.
Built for durability and precision, the MB Series handles corrosive and non-corrosive fluids (0.3–1000 cps) at operating temperatures between -15°C and 60°C. It offers manual stroke adjustment (0–100%) even during operation and delivers dosing accuracy of ±1% across the 30–100% range.
Available in multiple material options—PVC, SS304, SS316, and PVDF—and configurable with explosion-proof or variable-frequency motors, the MB Series is a practical and powerful solution for demanding metering environments.
MB model selection
Model | Flow (lph) | Pressure (bar) | Stroke/min |
Connection type | Connection type
| Connection type |
|---|---|---|---|---|---|---|
| MB0250 | 250 | 10 | 48 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0320 | 320 | 10 | 48 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0500 | 500 | 10 | 96 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0680 | 680 | 7 | 96 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0760 | 760 | 5 | 144 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB01000 | 1000 | 4 | 144 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB01200 | 1200 | 4 | 96 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
| MB01600 | 1600 | 3 | 144 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
| MB01800 | 1800 | 3 | 144 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
MB material selection
Pump head material | Diaphragm | Valve body | Valve seat | Valve ball | O-Rings | Inlet/outlet |
|---|---|---|---|---|---|---|
| PVC | PTFE | PVC | PVC | Ceramic | Viton | PE |
| PVDF | PTFE | PVDF | PVDF | Ceramic | Viton | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | PTFE | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | PTFE | SS316 |
MB specifications
| General specifications | |
|---|---|
| Model | MB Series |
| Flowrate | 240 - 1800 LPH |
| Pressure | 3 - 10 Bar |
| Pump head material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating method | Continuous or intermediate |
| Number of pump head | 1 |
| Connection type | Glue union / weld union |
| Flow adjustment method | Adjustable hand-wheel |
| Flow adjustment display method | Analog display |
| Control remotely | With additional ON/OFF actuator. |
| Suction Lift (m) | 3m |
| Inlet/outlet valve type | Single ball valve |
| Protection | IP65 |
| Insulation class | F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross weight: 34 KG Net weight: 37 KG |
| Driving method | Motor driven mechanical diaphragm |
| Supply required | 220V/380V, 4P 3ph 50Hz |
| Stroke per minute | 48 - 144 |
Diaphragm | |
|---|---|
| Driver parameters | |
| Standard Motor | IEC STANDARD MOTOR Voltage: 220V/380V, 4P 3ph 50Hz Protection:IP55 / Class F / TEFC |
| Optional* Motors (upon request) | IEC MOTOR VFD / EXD / VFD + EXD Voltage: 220V/380V, 4P 3ph 50Hz Protection: IP55 / Class F / TEFC |
| Diaphragm parameters | |
| Diameter | 148 - 185 mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| Fluid parameters | |
| Fluid temperature range | -15℃ - 60℃ |
| Viscosity range | 0.3 - 1000cps |
| Environmental parametres | |
Environment temperature range | －30℃ - ＋80℃ |
Outdoor Installation | Yes, with shelter protection from rain and direct sunlight. |
The Motor Driven MA Series is a mechanically operated diaphragm metering pump built for large-capacity, high-accuracy dosing in demanding industrial environments. With flow rates from 12 to 500 L/h and pressures up to 10 bar, it’s trusted across petrochemical, pharmaceutical, food processing, agriculture and water treatment sectors.
Designed for versatility, the MA Series handles corrosive and non-corrosive liquids (0.3–1000 cps) at temperatures from -15°C to 60°C. It offers manual flow adjustment (0–100%) during operation and maintains dosing accuracy of ±1% across the 30–100% range.
Available in PVC, SS304, SS316, or PVDF and compatible with variable-frequency motors, the MA Series delivers dependable performance with a simple structure and low energy consumption.
MA model selection
Model | Flow (lph) | Pressure (bar) | Stroke per minute |
| Connection type(PVC) | | Connection typeSS316 |
|---|---|---|---|---|---|---|---|
MA0015 | 12 | 10 | 48 | 0.25 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Inner Thread NPT | Φ8×14 Weld Union |
| MA0025 | 25 | 10 | 48 | 0.25 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Inner Thread NPT | Φ8×14 Weld Union |
| MA0040 | 40 | 10 | 48 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA0060 | 60 | 8 | 48 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA0080 | 80 | 8 | 96 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA00120 | 120 | 8 | 96 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA00180 | 180 | 8 | 96 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00250 | 250 | 7 | 96 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00320 | 320 | 7 | 144 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00400 | 400 | 5 | 144 | 0.37 | DN15 Glue Union | RC 3/4 Inner Thread NPT | Φ15×22 Weld Union |
| MA00500 | 500 | 5 | 144 | 0.37 | DN15 Glue Union | RC 3/4 Inner Thread NPT | Φ15×22 Weld Union |
MA material selection
Pump head material | Diaphragm | Valve body | Valve seat | Valve ball | O-Rings | Inlet/outlet |
|---|---|---|---|---|---|---|
| PVC | PTFE | PVC | PVC | Ceramic | Viton | PE |
| PVDF | PTFE | PVDF | PVDF | Ceramic | Viton | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | PTFE | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | PTFE | SS316 |
MA specifications
| General specifications | |
|---|---|
| Model | MA Series |
| Flowrate | 12 - 500 LPH |
| Pressure | 5 - 8 Bar |
| Pump head material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating method | Continuous or intermediate |
| Number of pump head | 1 |
| Connection type | Tube compression fitting / glue union / weld Union |
| Flow adjustment method | Adjustable hand-wheel |
| Flow adjustment display method | Analog display |
| Control remotely | With additional ON/OFF actuator. |
| Suction Lift (m) | 3m |
| Inlet/outlet valve type | Single ball valve |
| Protection | IP65 |
| Insulation class | Class F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross weight: 12 KG Net weight: 15KG |
| Driving method | Motor driven mechanical diaphragm |
| Supply required | 220V/380V, 4P 3ph 50Hz |
| Stroke per minute | 48 - 144 |
Diaphragm | |
|---|---|
| Driver parameters | |
| Standard motor | IEC STANDARD MOTOR Voltage: 220V/380V, 4P 3ph 50Hz Protection:IP55 / Class F / TEFC |
| Optional* motors (upon request) | IEC MOTOR VFD / EXD / VFD + EXD Power: 0.37 kW Voltage: 220V/380V, 4P 3ph 50Hz Protection: IP55 / Class F / TEFC |
| Diaphragm parameters | |
| Diameter | 65 - 112 mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| Fluid parameters | |
| Fluid temperature range | -15℃ - 60℃ |
| Viscosity range | 0.3 - 1000cps |
| Environment parameters | |
Environment temperature range | －30℃ - ＋80℃ |
Outdoor installation | Yes, with shelter protection from rain and direct sunlight. |
MG Series
Compact, Precise, and Built for Versatile Dosing
The MG Series is a mechanically operated diaphragm metering pump designed for accurate, efficient dosing in a wide range of industrial applications. With flow rates from 15 to 130 L/h and pressures up to 10 bar, it delivers reliable performance in sectors including water treatment, chemical processing, pharmaceuticals, food production, and agriculture.
Engineered for durability and flexibility, the MG Series handles corrosive or non-corrosive liquids (0.3–1000 cps) across temperatures from -15°C to 60°C. The pump offers manual stroke adjustment (0–100%) during operation, with dosing accuracy of ±1% over the 30–100% range.
Available in material options like PVC, SS304, SS316, and PTFE, and compatible with 220V or 380V motors, the MG Series is a compact, low-energy solution for consistent dosing performance.
MG Model Selection
Model | Flow (lph) | Pressure (bar) | Stroke/min |
| Connection Type
PVDF | Connection Type (304/316) |
|---|---|---|---|---|---|---|
| MG0015 | 15 | 10 | 130 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0025 | 25 | 10 | 86 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0040 | 40 | 7 | 130 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Female NPT | Φ8×14 Weld Union |
| MG0060 | 60 | 6 | 86 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG0080 | 80 | 5 | 86 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00100 | 100 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00120 | 120 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
| MG00150 | 150 | 4 | 130 | DN15 Glue Union | RC 1/2 Female NPT | Φ10×16 Weld Union |
MG Material Selection
Pump Head Material | Diaphragm | Valve Seat | Valve Ball | Inlet | Outlet |
|---|---|---|---|---|---|
| PVC | PTFE | Viton Rubber | Ceramic | PE | PE |
| PVDF | PTFE | Viton Rubber | Ceramic | PE | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | SS316 |
MG Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Model | MG Series |
| Flowrate | 15 - 150 LPH |
| Pressure | 4 - 10 Bar |
| Pump Head Material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating Method | Continuous or Intermediate |
| Number of pump head | 1 |
| Connection Type | Tube Compression Fitting / Glue Union / Weld Union |
| Flow Adjustment Method | Adjustable Handwheel |
| Flow Adjustment Display Method | Analog Display |
| Control remotely | No |
| Suction Lift | 2m |
| Inlet/Outlet Valve type | Ball Valve - Single |
| Protection | IP55 |
| Insulation Class | Class F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross Weight: 9.5 KG Net Weight: 10KG |
| Driving method | Motor Driven |
| Input Power | MG15-130: 60W MG150: 90W |
| Supply Required | 1ph/3ph 50Hz – 220V/380V |
| Stroke per Minute | 80 - 180 |
| DIAPHRAGM DETAILS | |
|---|---|
| Diameter (mm) | 60 - 84mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| DRIVER PARAMETERS | |
| Motor Size | 1ph/3ph 50Hz – 220V/380V |
| Power | MG15-130: 60W MG150: 90W |
| Ingress Protection | IP55 |
| Insulation Class | Class F |
| Explosion Proof | No |
| ENVIRONMENT PARAMETERS | |
| Fluid Temperature Range | -15 - 60 (°C) |
| Fluid Viscosity Range | 0.3 - 1000 cps |
| Environment Temperature Range | -30 - 80 (°C) |
| Outdoor Usage | Yes, under shelter protection from direct sun and rain |
MB Series
Robust Metering for Continuous Industrial Operation
The MB Series is a mechanically driven diaphragm metering pump designed for reliable, high-capacity dosing in a wide range of industrial and process applications. With flow rates from 10 to 1800 L/h and pressure handling up to 10 bar, it is well-suited for sectors such as chemical processing, water treatment, pharmaceuticals, food production and environmental protection.
Built for durability and precision, the MB Series handles corrosive and non-corrosive fluids (0.3–1000 cps) at operating temperatures between -15°C and 60°C. It offers manual stroke adjustment (0–100%) even during operation and delivers dosing accuracy of ±1% across the 30–100% range.
Available in multiple material options—PVC, SS304, SS316, and PVDF—and configurable with explosion-proof or variable-frequency motors, the MB Series is a practical and powerful solution for demanding metering environments.
MB Model Selection
Model | Flow (lph) | Pressure (bar) | Stroke/min |
Connection Type | Connection Type
| Connection Type |
|---|---|---|---|---|---|---|
| MB0250 | 250 | 10 | 48 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0320 | 320 | 10 | 48 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0500 | 500 | 10 | 96 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0680 | 680 | 7 | 96 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB0760 | 760 | 5 | 144 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB01000 | 1000 | 4 | 144 | DN25 Glue Union | RC 1″ Inner Thread NPT | RC 1″ Inner Thread NPT |
| MB01200 | 1200 | 4 | 96 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
| MB01600 | 1600 | 3 | 144 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
| MB01800 | 1800 | 3 | 144 | DN40 Glue Union | RC 1 1/2″ Inner Thread NPT | RC 1 1/2″ Inner Thread NPT |
MB Material Selection
Pump Head Material | Diaphragm | Valve Body | Valve Seat | Valve Ball | O-Rings | Inlet/Outlet |
|---|---|---|---|---|---|---|
| PVC | PTFE | PVC | PVC | Ceramic | Viton | PE |
| PVDF | PTFE | PVDF | PVDF | Ceramic | Viton | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | PTFE | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | PTFE | SS316 |
MB Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Model | MB Series |
| Flowrate | 240 - 1800 LPH |
| Pressure | 3 - 10 Bar |
| Pump Head Material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating Method | Continuous or Intermediate |
| Number of pump head | 1 |
| Connection Type | Glue Union / Weld Union |
| Flow Adjustment Method | Adjustable Hand-wheel |
| Flow Adjustment Display Method | Analog Display |
| Control remotely | With additional ON/OFF actuator. |
| Suction Lift (m) | 3m |
| Inlet/Outlet Valve type | Single Ball Valve |
| Protection | IP65 |
| Insulation Class | F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross Weight: 34 KG Net Weight: 37 KG |
| Driving method | Motor Driven Mechanical Diaphragm |
| Supply Required | 220V/380V, 4P 3ph 50Hz |
| Stroke per Minute | 48 - 144 |
DIAPHRAGM | |
|---|---|
| DRIVER PARAMETERS | |
| Standard Motor | IEC STANDARD MOTOR Voltage: 220V/380V, 4P 3ph 50Hz Protection:IP55 / Class F / TEFC |
| Optional* Motors (upon request) | IEC MOTOR VFD / EXD / VFD + EXD Voltage: 220V/380V, 4P 3ph 50Hz Protection: IP55 / Class F / TEFC |
| DIAPHRAGM PARAMETERS | |
| Diameter | 148 - 185 mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| FLUID PARAMETERS | |
| Fluid temperature range | -15℃ - 60℃ |
| Viscosity range | 0.3 - 1000cps |
| ENVIRONMENT PARAMETERS | |
Environment temperature range | －30℃ - ＋80℃ |
Outdoor Installation | Yes, with shelter protection from rain and direct sunlight. |
MA Series
High-Volume Dosing with Industrial Reliability
The MA Series is a mechanically operated diaphragm metering pump built for large-capacity, high-accuracy dosing in demanding industrial environments. With flow rates from 10 to 1800 L/h and pressures up to 10 bar, it’s trusted across petrochemical, pharmaceutical, food processing, agriculture and water treatment sectors.
Designed for versatility, the MA Series handles corrosive and non-corrosive liquids (0.3–1000 cps) at temperatures from -15°C to 60°C. It offers manual flow adjustment (0–100%) during operation and maintains dosing accuracy of ±1% across the 30–100% range.
Available in PVC, SS304, SS316, or PVDF and compatible with variable-frequency motors, the MA Series delivers dependable performance with a simple structure and low energy consumption.
MA Model Selection
Model | Flow (lph) | Pressure (bar) |
| Connection Type(PVC) | | Connection TypeSS316 |
|---|---|---|---|---|---|---|
MA0015 | 15 | 10 | 0.25 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Inner Thread NPT | Φ8×14 Weld Union |
| MA0025 | 25 | 10 | 0.25 | Φ6×9 PE Tube Compression Fitting | RC 1/2 Inner Thread NPT | Φ8×14 Weld Union |
| MA0040 | 40 | 10 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA0060 | 60 | 8 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA0080 | 80 | 8 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA00120 | 120 | 8 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ10×16 Weld Union |
| MA00180 | 180 | 8 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00250 | 250 | 7 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00320 | 320 | 7 | 0.25 | DN15 Glue Union | RC 1/2 Inner Thread NPT | Φ15×22 Weld Union |
| MA00400 | 400 | 5 | 0.37 | DN15 Glue Union | RC 3/4 Inner Thread NPT | Φ15×22 Weld Union |
| MA00500 | 500 | 5 | 0.37 | DN15 Glue Union | RC 3/4 Inner Thread NPT | Φ15×22 Weld Union |
MA Material Selection
Pump Head Material | Diaphragm | Valve Body | Valve Seat | Valve Ball | O-Rings | Inlet/Outlet |
|---|---|---|---|---|---|---|
| PVC | PTFE | PVC | PVC | Ceramic | Viton | PE |
| PVDF | PTFE | PVDF | PVDF | Ceramic | Viton | PE |
| SS304 | PTFE | SS304 | SS304 | SS304 | PTFE | SS304 |
| SS316 | PTFE | SS316 | SS316 | SS316 | PTFE | SS316 |
MA Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Model | MA Series |
| Flowrate | 12 - 500 LPH |
| Pressure | 5 - 8 Bar |
| Pump Head Material | Standard: PVC Optional: PVDF, SS304, SS316 |
| Operating Method | Continuous or Intermediate |
| Number of pump head | 1 |
| Connection Type | Tube Compression Fitting / Glue Union / Weld Union |
| Flow Adjustment Method | Adjustable Hand-wheel |
| Flow Adjustment Display Method | Analog Display |
| Control remotely | With additional ON/OFF actuator. |
| Suction Lift (m) | 3m |
| Inlet/Outlet Valve type | Single Ball Valve |
| Protection | IP65 |
| Insulation Class | Class F |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight | Gross Weight: 12 KG Net Weight: 15KG |
| Driving method | Motor Driven Mechanical Diaphragm |
| Supply Required | 220V/380V, 4P 3ph 50Hz |
| Stroke per Minute | 48 - 144 |
DIAPHRAGM | |
|---|---|
| DRIVER PARAMETERS | |
| Standard Motor | IEC STANDARD MOTOR Voltage: 220V/380V, 4P 3ph 50Hz Protection:IP55 / Class F / TEFC |
| Optional* Motors (upon request) | IEC MOTOR VFD / EXD / VFD + EXD Power: 0.37 kW Voltage: 220V/380V, 4P 3ph 50Hz Protection: IP55 / Class F / TEFC |
| DIAPHRAGM PARAMETERS | |
| Diameter | 65 - 112 mm |
| Material | 1st Layer: PTFE 2nd Layer: EPDM Rubber 3rd Layer: 3.0mm SUS304 4th Layer: Nylon Fibber 5th Layer: EPDM Rubber |
| FLUID PARAMETERS | |
| Fluid temperature range | -15℃ - 60℃ |
| Viscosity range | 0.3 - 1000cps |
| ENVIRONMENT PARAMETERS | |
Environment temperature range | －30℃ - ＋80℃ |
Outdoor Installation | Yes, with shelter protection from rain and direct sunlight. |
